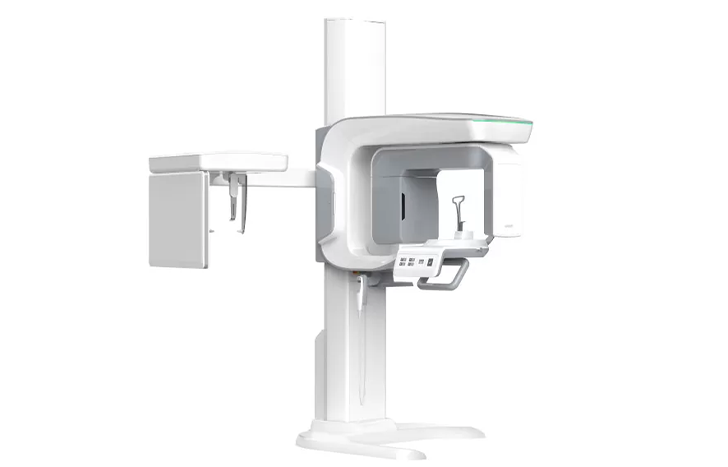

Vatech Smart Plus CBCT is a 4‑in‑1 dental imaging system that combines panoramic, optional cephalometric, 3D CBCT, and model scanning in a single unit. It offers flexible scan modes and high-quality imaging, making it suitable for general dentistry, orthodontics, implant planning, and model digitisation.

‍

• Captures both 2D (panoramic, cephalometric) and 3D (CBCT) images in a single scan

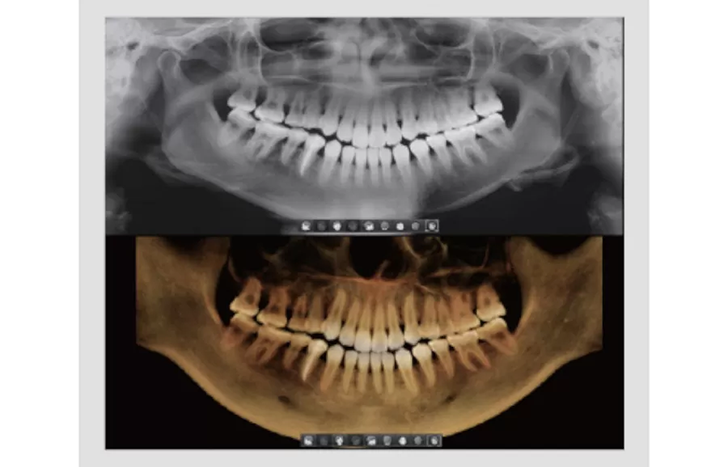

• “One viewer” interface displaying 2D and 3D images together
• Extended arch-shaped field of view (FOV) for broader anatomical coverage
• Compressed sensing technology for enhanced image quality at lower radiation dose
• Artifact reduction (ART‑V) to minimise streaks from metal objects
• Multi-layer panoramic imaging (Insight Pan) for improved diagnostic clarity
• Model-scan mode for digitising plaster models for CAD/CAM workflows
• Versatile for implant planning, orthodontics, restorative dentistry, and surgical cases

‍

• Focal spot size: 0.5 mm (IEC 60336)
• CT Field of View (FOV): 5×5 cm, 10×8.5 cm, 12×9 cm arch-shaped volume
• Voxel sizes: 0.08 mm / 0.12 mm / 0.2 mm / 0.3 mm
• Scan times: CT approx. 18 s; Panoramic 7 s / 14.1 s; Cephalometric 1.9 s / 3.9 s
• Tube voltage: 60–99 kVp
• Tube current: 4–16 mA

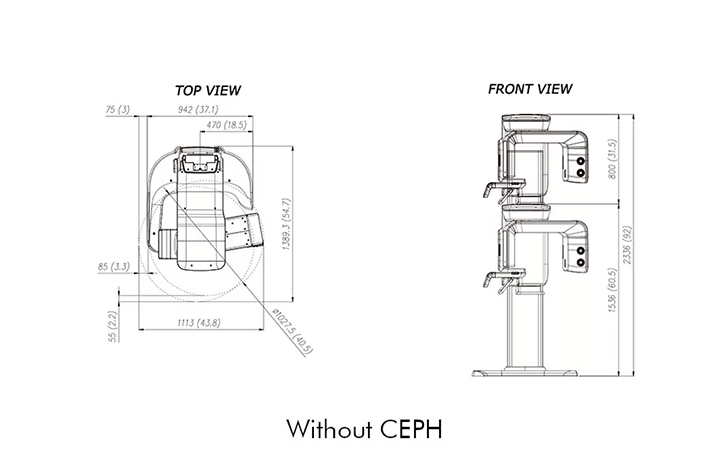

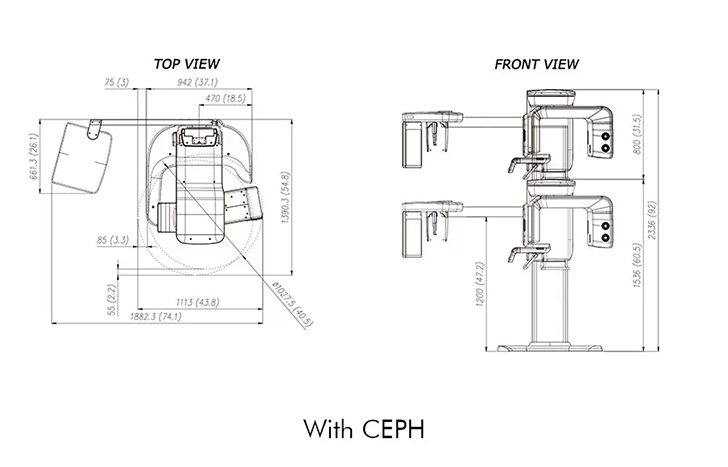

• Weight: ~137 kg (without Ceph) / ~162 kg (with Ceph)
• Modes: CBCT, panoramic, cephalometric, model-scan
• Software: Integrated “one viewer” for 2D and 3D imaging
• Additional features: Compressed sensing reconstruction, ART‑V artifact reduction, Insight Pan multi-layer panoramic imaging

‍
