Equipment

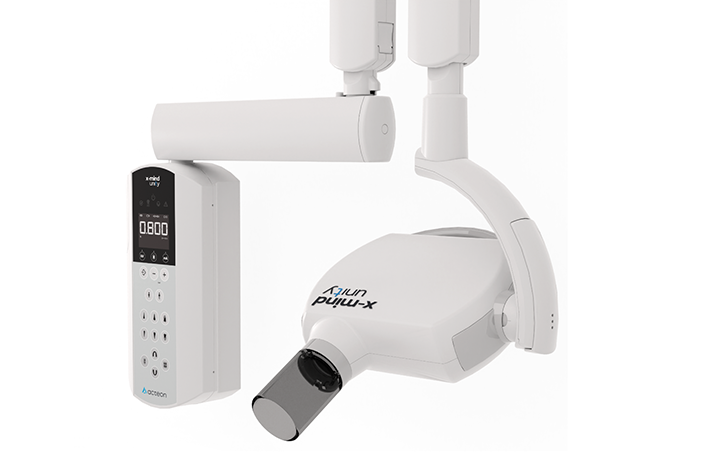

The Acteon X-Mind Unity is a high-performance intraoral X-ray system designed for precise imaging and patient safety. Using ACE® technology, it reduces radiation by automatically stopping exposure once enough dose is captured. With a 0.4 mm focal spot, adjustable settings (60–70 kV, 4–7 mA), and flexible arm lengths, it delivers clear, detailed images. Wall or mobile mounting, ergonomic sensor holders, and anti-vibration features make it versatile and easy to use in any clinic.

‍

• Reduced radiation
• Sharp images
• Adjustable settings
• Flexible installation
• Ergonomic design
• Stable operation
• Dose tracking

‍

• Voltage: 100–240 V, 50/60 Hz
• Power: 850 VA
• Focal Spot: 0.4 mm
• X-ray Settings: 60–70 kV, 4–7 mA
• Exposure Time: 0.02–2 s
• Filtration: >1.5 mm Al @ 70 kV
• Leakage Radiation: <0.25 mGy/h
• Mounting: Wall (top/bottom) or mobile, arm lengths 0.40–1.10 m
• Weight: 23 kg
• Cooling: 32 s per 1 s exposure
• Compatibility: Film, phosphor plates, or digital sensors
• Dose Tracking: Timer and software display
